Wildcat Cast Iron Drain Grates And Precast Concrete Boxes
Wildcat has created a line of heavy-duty concrete drain boxes and a line of cast iron grate solutions for high water flow areas. The system components are designed to work together for perfect fit. Whether you are installing a new drain system or simply replacing grates Wildcat has you covered.

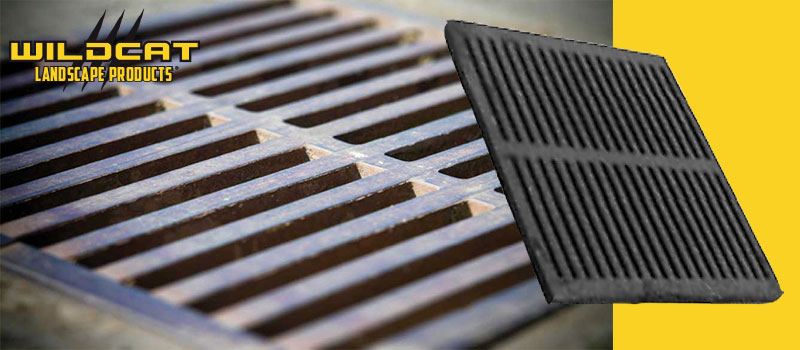

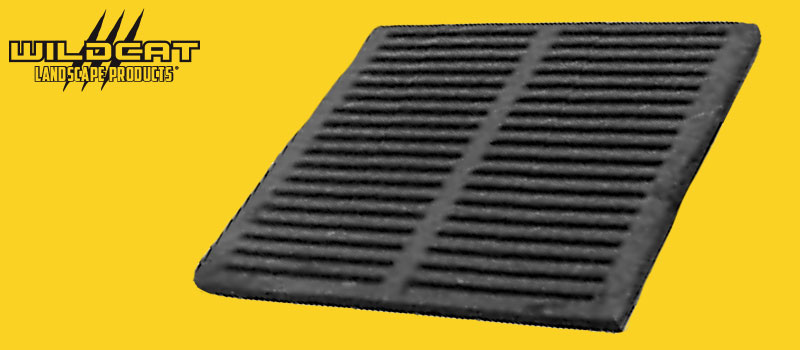

Cast Iron Square Drain Grates
Made from heavy duty cast iron, this grate is designed for high water flow and years of service. Thick casting makes this grate resistant to weathering and cracking like plastic grates. Slotted to allow water to drain through, this grate will perform in any high pedestrian traffic area or application. We offer 7 sizes to choose from.

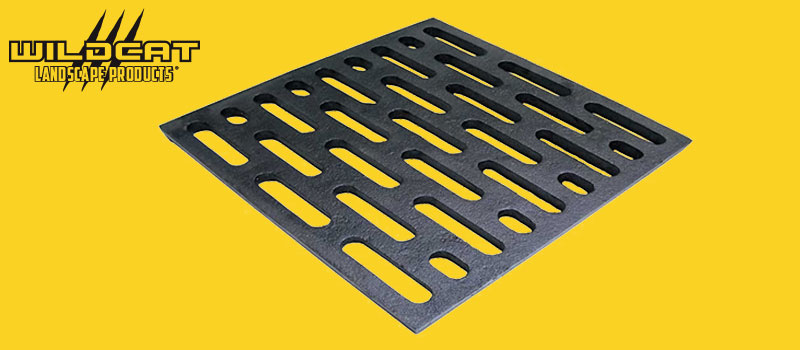

Grates come in a standard slotted pattern. 16” grate is only available in the bicycle pattern. All our grates are designed to fit with frames and our precast drain boxes. Grates are tapered for easy fit and removal with frames or boxes. Available in, 6”, 8”, 10”, 12”, 16”, 18”, and 24”

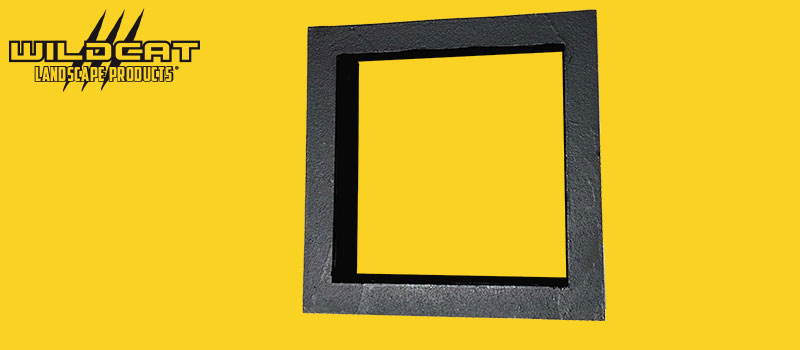

Cast Iron Square Drain Frames

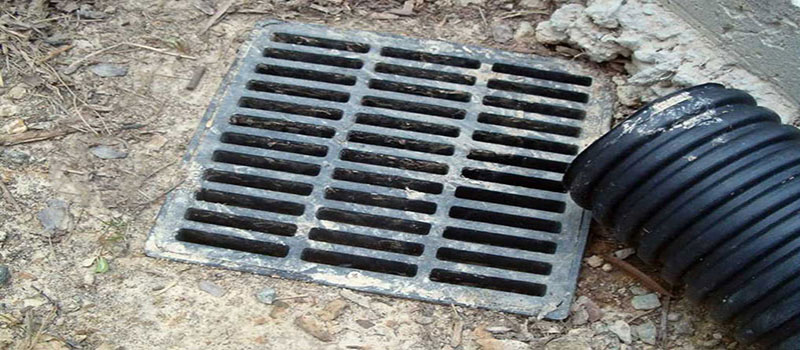

Designed for unique applications where a special design or high demand for water flow is necessary. Heavy duty cast frame allows the user to wet set the frame into a concrete or other application and create their own water storage basin or drain box. Made of heavy duty cast iron this frame gives a sturdy base to install your grate in your pedestrian traffic area.

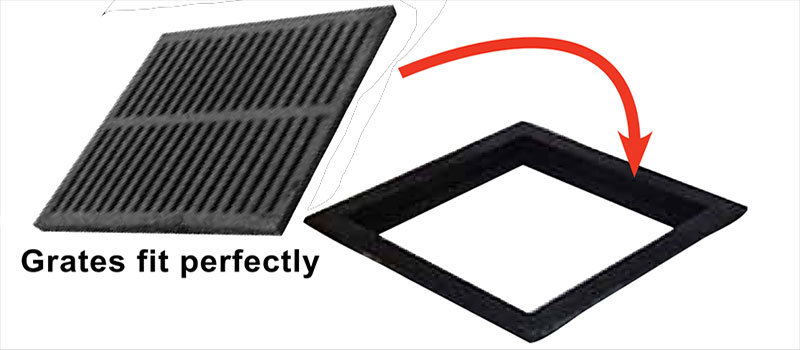

Frames are designed to work with Wildcat Grates or any similar size grate. Frames are available in the most popular 7 sizes. Frames are designed to work with 6”, 8”, 10”, 12”, 16”, 18”, and 24”

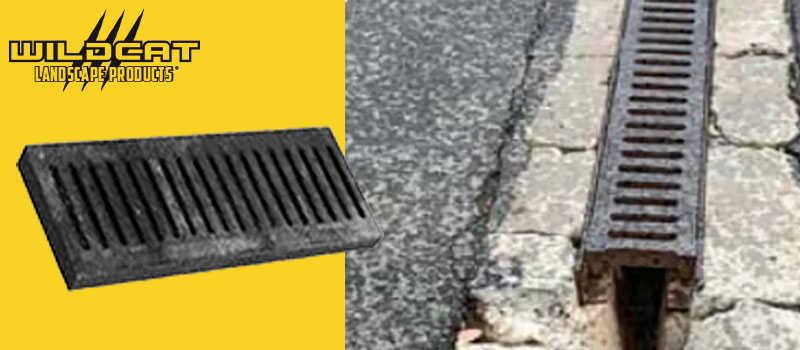

Cast Iron Channel Grates
This heavy-duty grate is designed to be used over a rectangular channel or trench. This sturdy grate can be used in long stretch across a patio, walkway, bike path or any other high water flow area. Channel grates can be used on driveway edges to remove water safely and effectively off the walking or driving surface.
Most channel grates are installed over a poured concrete lip or slot to accept the grate, or an inset angle iron could be used depending on use and application. Channel grates come in 24" lengths and 6", 8" and 12" widths.

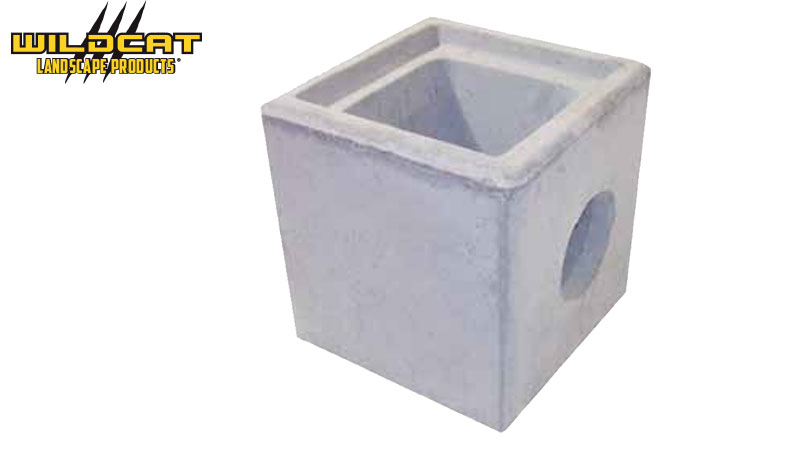

Precast Concrete Drain Boxes

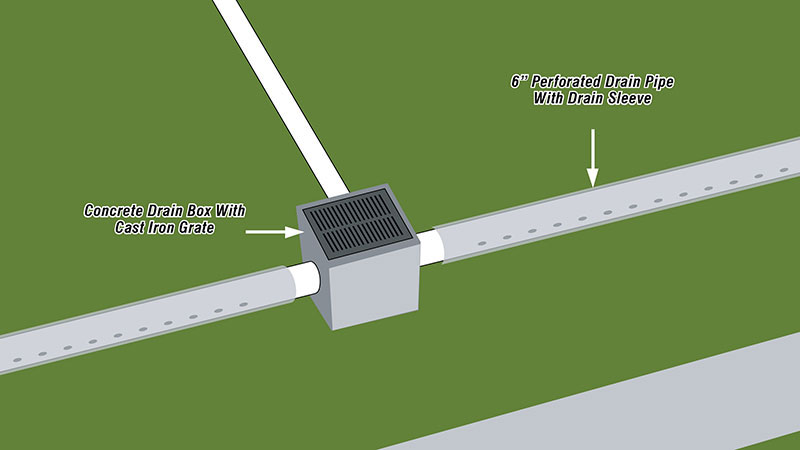

Solid cast concrete boxes used to collect high volume water flows from yards, lawns, patios, and paved areas. Box design allows sand and dirt to drop to bottom of box for easy clean up. Water rises to drain out through the side outlet. Boxes come with size appropriate drain outlets on the sides. Side outlets are easily punched out to accept your drain pipe.

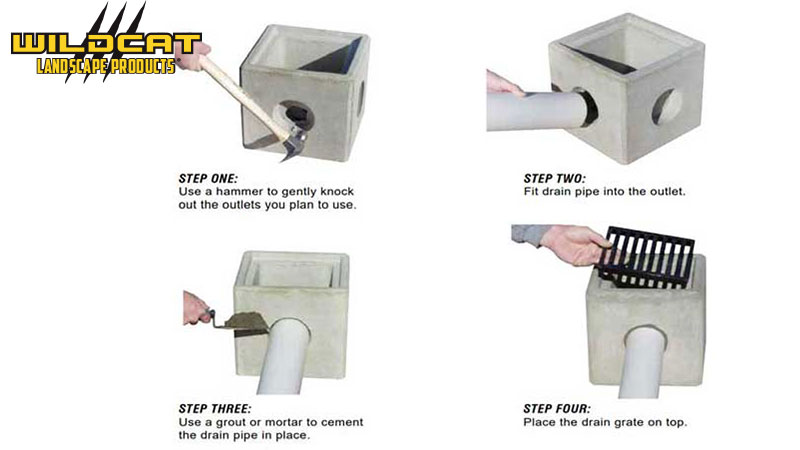

Install GuideFor use in any high traffic pedestrian area. These boxes come in 5 sizes to fit your drainage or water runoff need. Wildcat Square Cast Iron Grates are designed to fit into these boxes, but the boxes are in 6 popular styles to accept compatible sized plastic grates.
